VW Polo GTI (AW) | Open Cone Intake System
SKU: RV031M600300

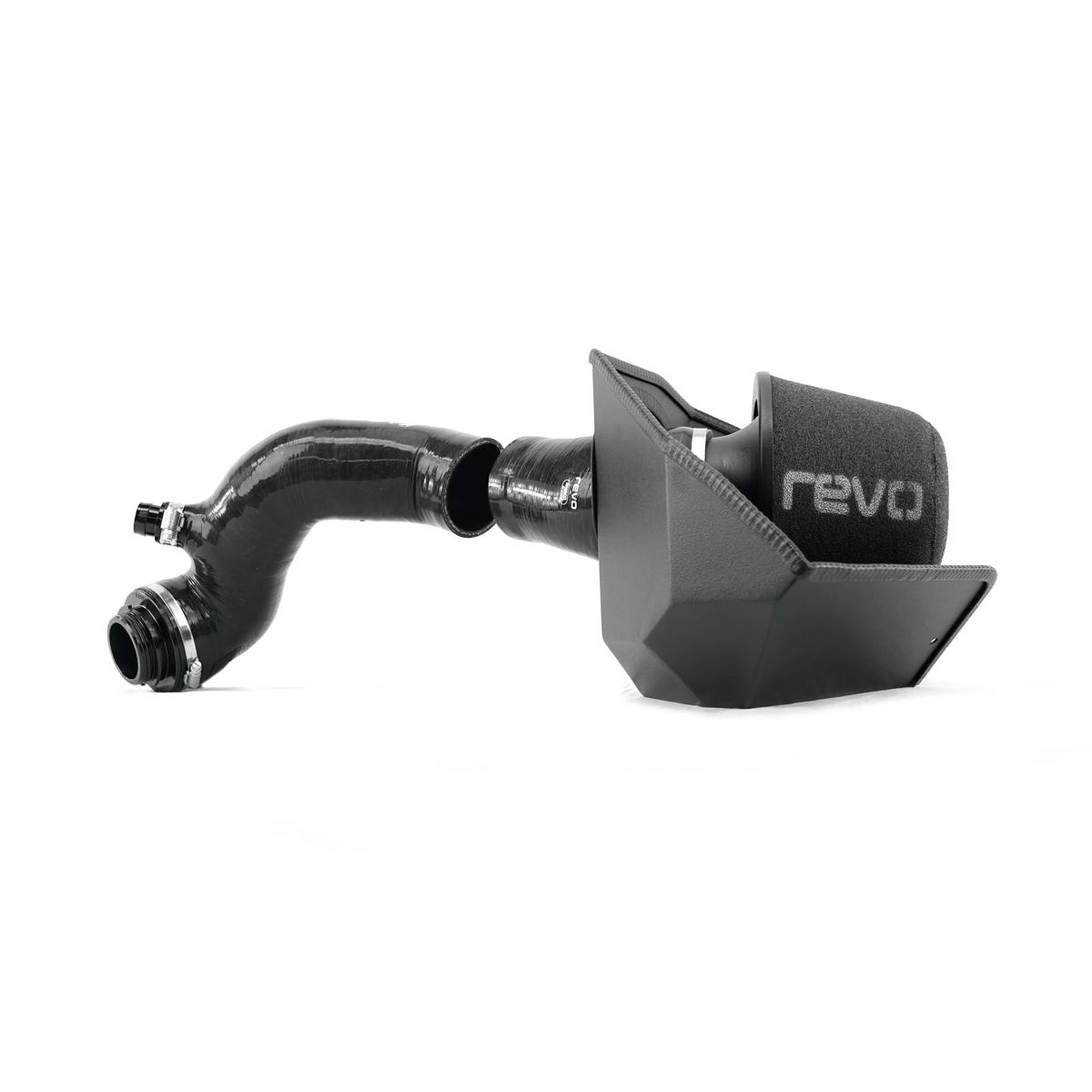

REVO OPEN CONE AIR INTAKE SYSTEM

VW POLO GTI AW 2.0TSI

The Revo open cone Air Intake System for the VW Polo GTI (AW) improves performance and offers an aggressive intake sound. Ensuring your engine can get access to enough air is paramount when increasing power; more air means more power throughout the rev range.

Only Revo Air Intake Systems are specifically designed to work in harmony with your vehicle and Revo ECU Software. Engineered to directly replace the stock airbox, pipework and filter, this kit comes complete with a front silicone hose, rear silicone hose, heat shield, filter, turbo inlet and fitting kit.

Key Features

• Increased Performance & Air Flow Efficiency
• Three Stage Foam Filter
• Direct filter to turbo fitment (no additional turbo elbow required)
• Stepped Silicone for smooth airflow
• Complete kit designed specifically for this platform/engine variant

OEM vs REVO

When you begin to enhance performance, the restrictive OEM intake struggles to flow enough air, robbing the engine of power. The Revo Air Intake System removes these restrictive elements promoting smoother airflow. Open Cone systems replace the OEM air box to make space for the heat shield, filter and pipework which joins directly to the turbo. Revo Flush Fit silicone hoses avoid unwanted turbulence at joins and increase the rate at which air can flow ensuring maximum performance at any level of tuning.

Silicone Hoses

No detail has been overlooked when reducing restrictions within the stock airflow system. The stock corrugated plastic hose is replaced with a smooth silicone one, reducing air turbulence and increasing air volume and speed. A four-ply construction with an internal wire helix increases strength to prevent collapsing under pressure. Internal steps flush fit against the stock MAF sensor and the Revo turbo inlet, creating a smooth transition between components and ensuring the smoothest airflow.

Turbocharger Inlet

The Revo machined inlet replaces the restrictive elbow found on MQB vehicles fitted with the transverse 2.0T EA888 Gen3B engine variants. The machined billet aluminium inlet securely fits the OE unit using locking tabs and integrated O-rings. The internal bell mouth structure of the upgraded inlet further aids the design of the Revo hose, as the bell mouth allows for a smooth airflow transition from a large cross-sectional area to a smaller one (turbo), within a small physical space. Air can then stabilise and distribute before a smooth tapered transition to the turbo. Removing the internal steps between components further ensures uninterrupted airflow and removes any unnecessary turbulence.

Air Filter

An intake system is only as good as the filter. This kit comes complete with a custom Revo foam filter, supported by galvanised epoxy-coated mesh for strength under load. Revo three-stage foam filters work very differently from conventional paper or cotton-gauze alternatives designed to trap particles on the outer layer. Revo filters trap debris and particles within the foam layers, allowing air to still navigate through. The spun base of the filter offers a smooth radius aluminium bell mouth, specifically designed for optimum airflow from the filter to pipe-work.

Heatshield

Ensuring the engine has access to cold air is vital for performance. The Revo heat shield channels cold air from the front intake duct while partitioning the filter from the heat of the engine bay. The Revo Heatshield uses stock mounting points to provide an easy and secure installation.
