TFSI/TSI Engine, Transmission & Pendulum Mount
SKU: TFSITSITRANPEND

Overview

The Revo mount upgrade kit (including Engine, transmission and pendulum mounts) is designed to improve the driving experience of your vehicle.

Power development on the EA888 2.0L engine quickly uncovered problems with severe engine movement. The fluid-damper design of the stock engine/transmission mounts and air gap design of the lower torque mount become overtaxed with increased power. Numbing the driver of critical vehicle feedback and absorbing useable power.

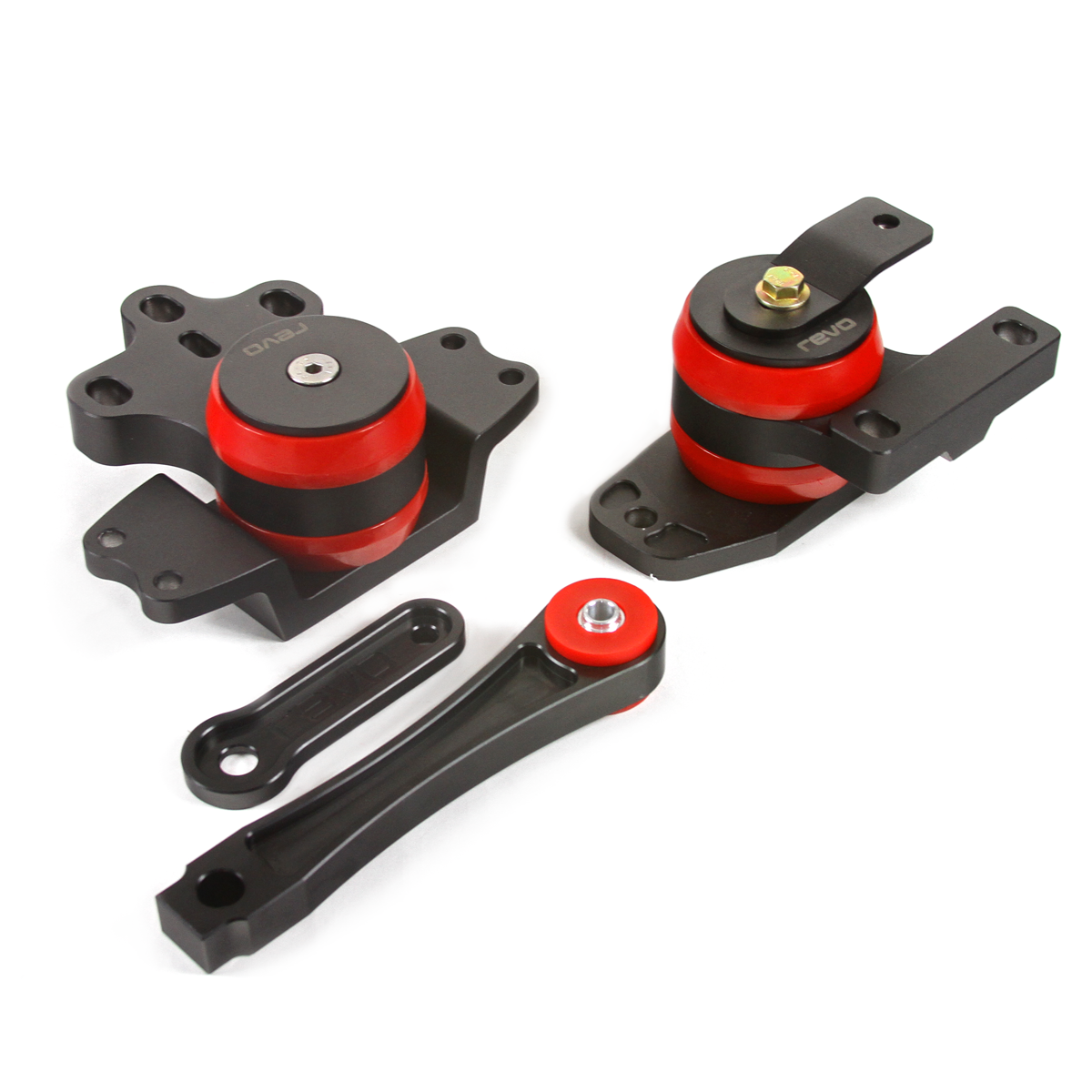

The Revo mount system includes replacement engine and transmission mount assemblies. As well as a replacement lower torque arm and lower bushing insert. Precision-machined aluminium/stainless steel parts and Powerflex polyurethane bushings manage the movement of uprated engines. Transferring more energy to the wheels versus the OEM mounts. The polyurethane bushing design provides a more connected feeling for the driver during spirited drives. This reduces engine movement and stiffens up the front of your vehicle.

Key Features

• High strength, high-quality material construction
• Direct replacement kit
• Powerflex polyurethane bushings
• Reduced engine movement

Direct Replacement

Using 3D CAD modelling software, Revo engineers digitized each OEM mount for exact fitment. Several prototypes were evaluated to ensure factory alignment between the vehicle’s engine and chassis. Each Revo kit includes an assortment of brackets and spacers to securely mount any accessories previously fixtured to the stock units.

High Strength Construction

6061 T6 aluminium billet and 304 stainless steel round are used to manufacture the mount frames, while each bushing is moulded from top quality polyurethane by Powerflex. All manufacturing is controlled to a strict dimensional tolerance to guarantee each mount is identical to the prototypes tested. Custom length, Grade 10.9 bolts are supplied with each kit to match the strength & thread engagement of the factory units.

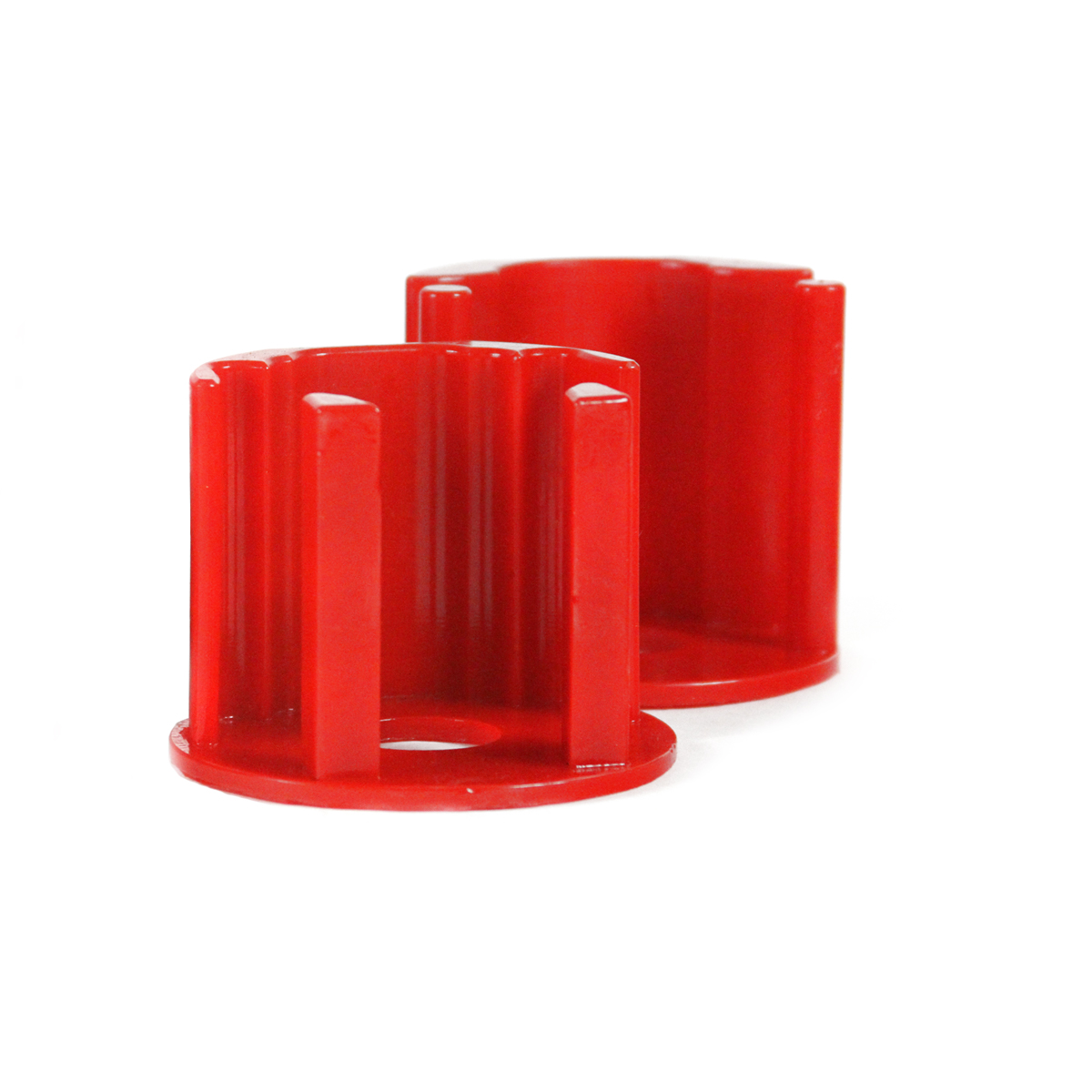

Powerflex Bushing

Powerflex utilises a unique formula of polyurethane, custom-designed to ensure optimum fitment in the machined housings. After testing various amounts of compliance, our engineers were able to fine-tune the final bush to achieve a balance between performance and comfort. Polyurethane is also resistant to oil, fuel unlike the rubber used in the OEM mount which can lead to perishing and failure. Our specified durometers provide a stiffer mount to limit the engine movement without compromising on NVH (Noise Vibration Harshness) levels in the process.

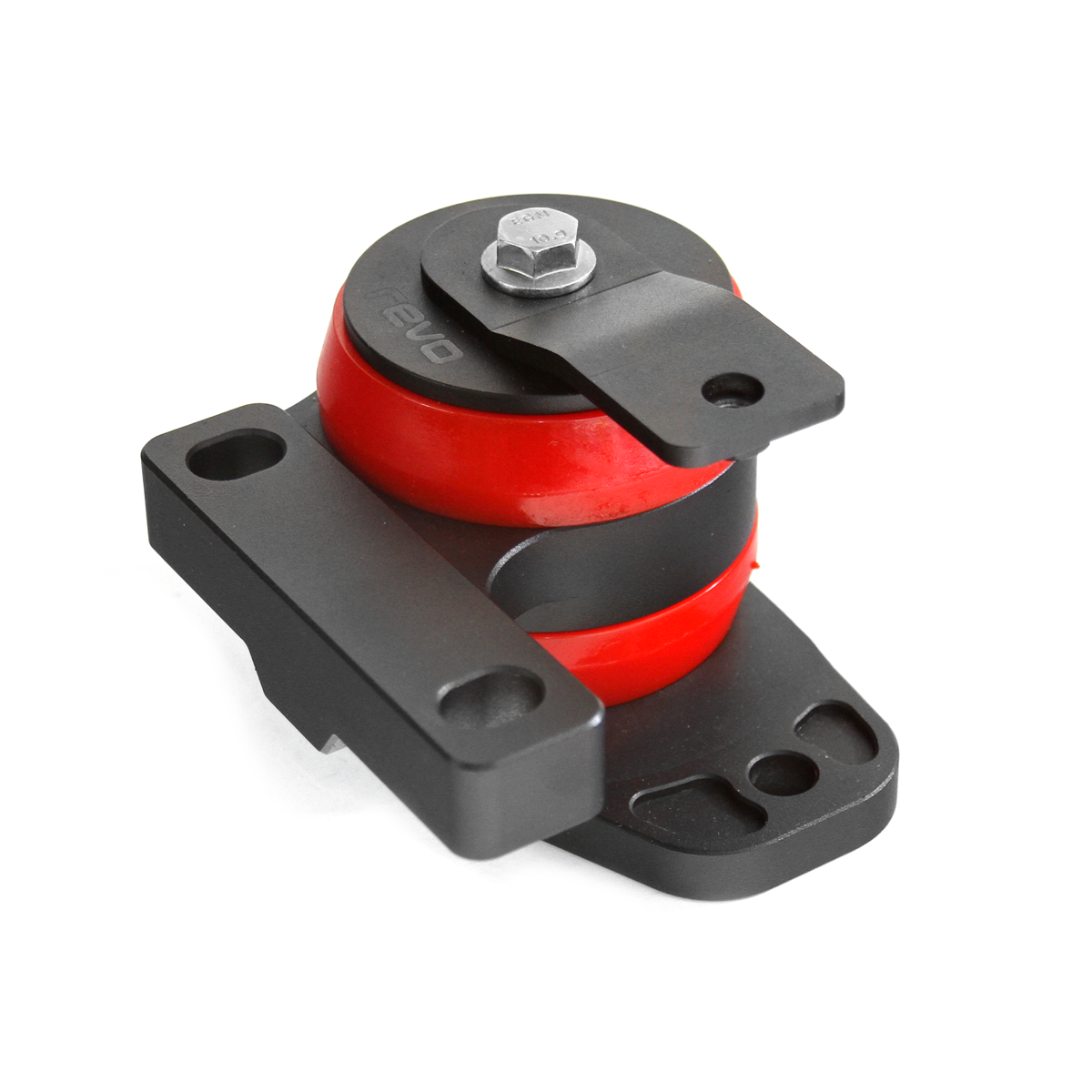

Engine Mount

Several specific details set the Revo engine mount apart from similar kits. The engine mount bushings, mounting arm and base plate are all specifically sized to provide clearance to the engine block bracket. The mounting arm locator is machined to 0.30mm tolerance to provide engagement to the stock mounting bracket without any interference. Each kit includes a variety of brackets and spacers designed to provide new mounting points for every part previously mounted to the stock assembly. The Type II hard aluminium anodizing, powder-coated steel parts and stainless steel non-critical hardware provide excellent corrosion protection while the Grade 10.9 steel bolts provide OE level strength.

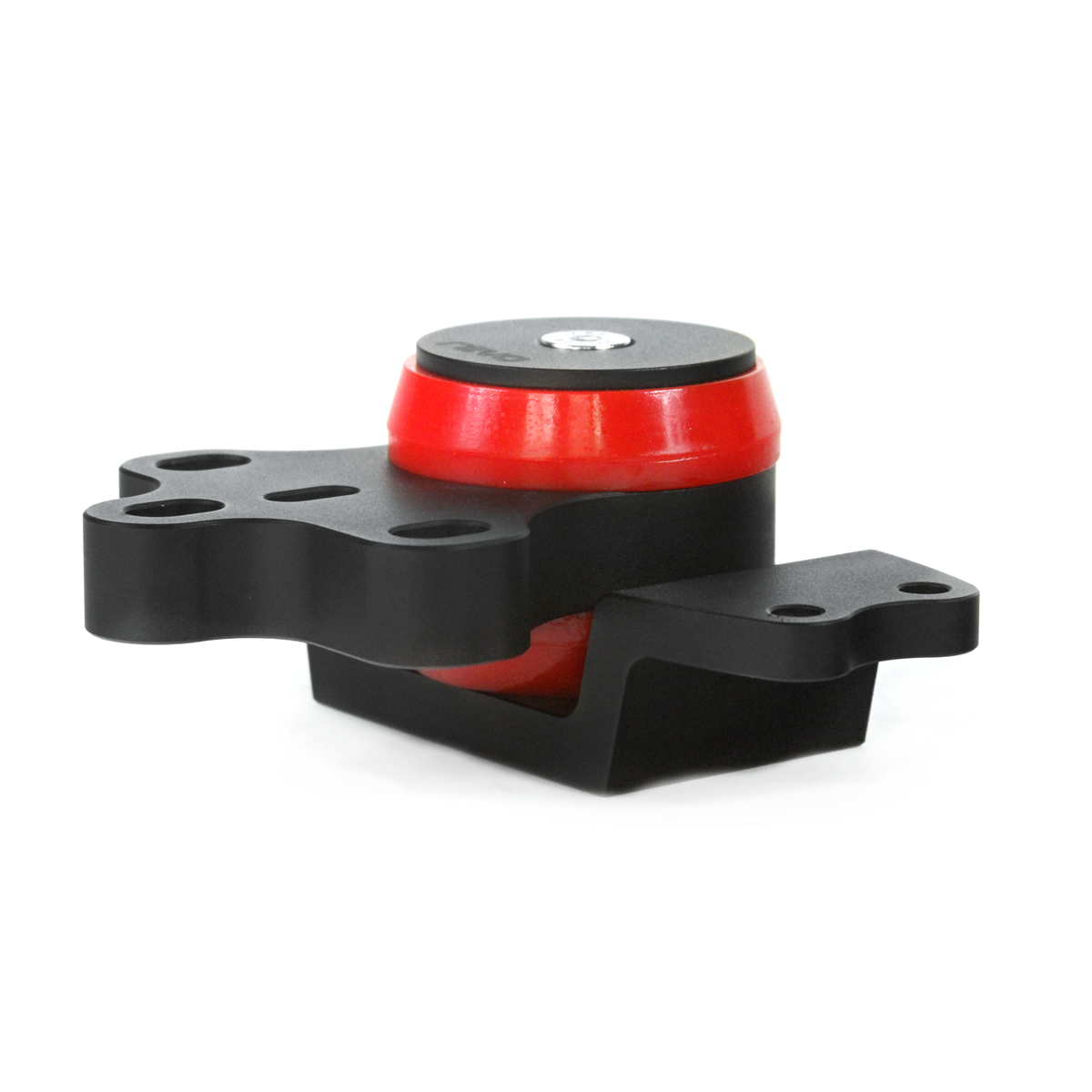

Transmission Mount

As with the engine mount, several specific details set the Revo transmission mount apart. The mount base plate is designed to incorporate the Revo bushings while providing clearance to the chassis frame rail. Several prototypes were used to adjust the overall height of the assembly, optimizing clearance to the wiring tray mounted above and frame rail below. The same Type II hard anodizing and custom length Grade 10.9 bolts provide OE level strength and corrosion resistance.

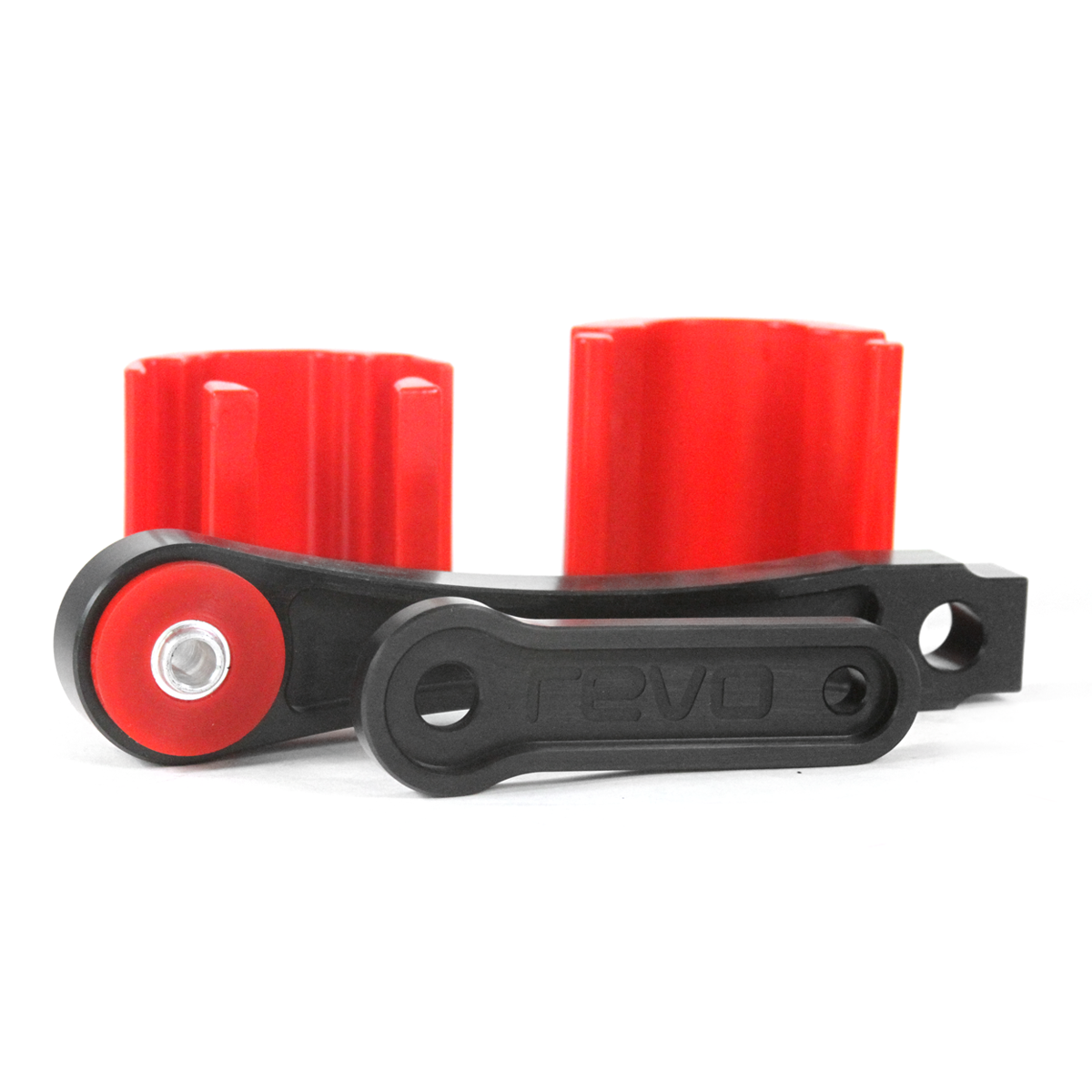

Pendulum Mount

Long-term prototype testing revealed several key elements integrated into the Revo pendulum mount. High durometer link bushings are used to keep but decrease compliance at the stock location, thereby reducing accelerated wear on the stock sub-frame mount while still reducing engine movement. Close manufacturing tolerances are held on the rear of the pendulum mount arm, ensuring perfect fitment into the stock sub-frame mount on every vehicle. Prototype testing revealed that even high-spec. hard anodizing succumb to the combination of heat/road debris over time and fades, leaving the bare aluminium exposed to the elements. As such, both exposed aluminium pieces are powder coated and stainless steel bolts used to ensure corrosion resistance.

Additional Information

See more information and download fitting instructions over at onlyrevo.com
