Audi RS3 (8V) | Disc Upgrade
SKU: RA551B200600

Overview

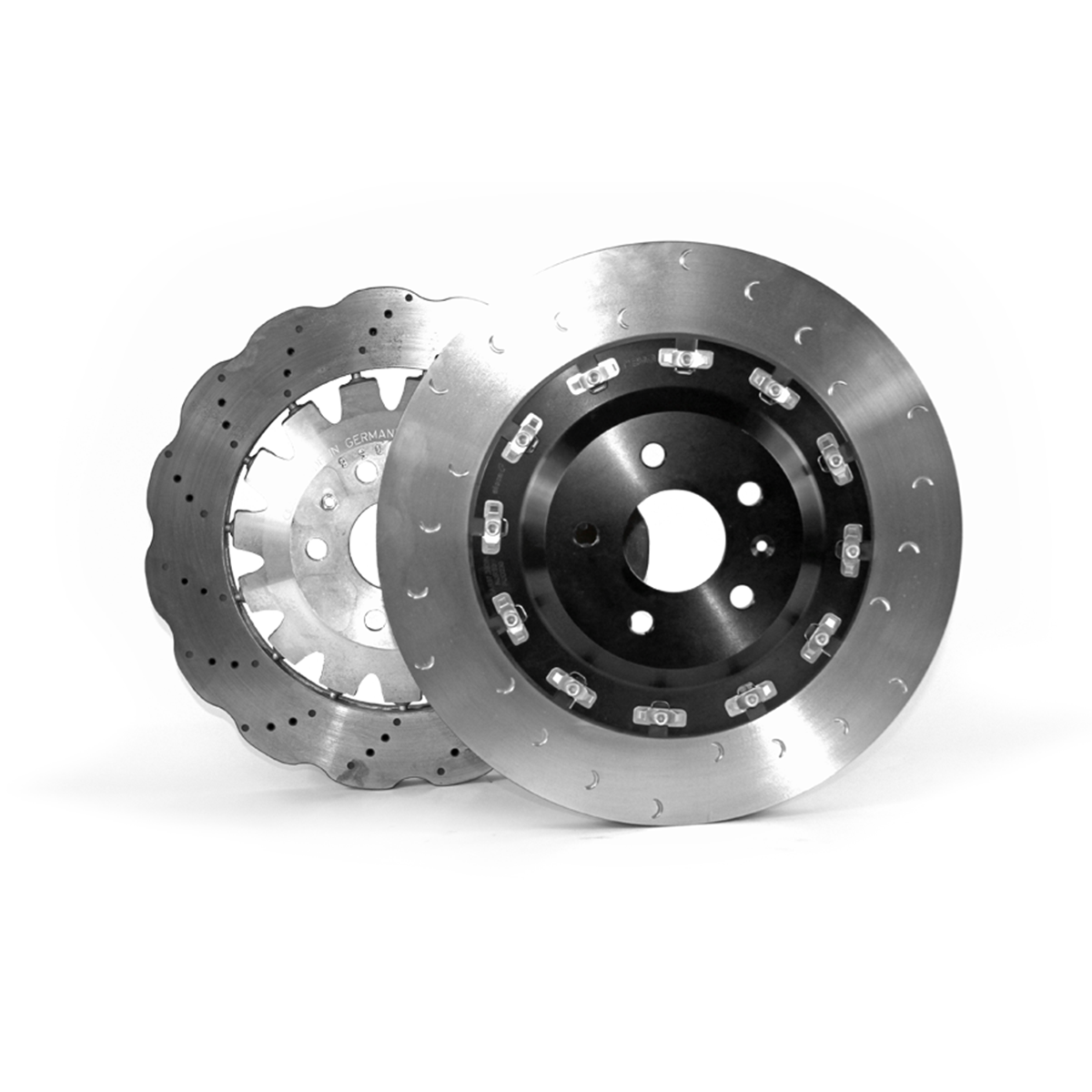

The Audi RS3 comes with a fairly substantial 8-pot brake setup straight from the factory. Whilst the stock calliper works very well the same can’t be said for the discs or the factory specification pads that seem to perform best at lower temperatures or very light road use. The factory 370mm ‘wavy’ discs certainly look the part but the design flaw is that both discs are identical; when fitted, the cooling vanes in the right-hand disc face the wrong direction and do not offer any cooling benefit. The excessive heat this generates combined with the factory pad compound causes big issues with braking efficiency and longevity of the disc and pads.

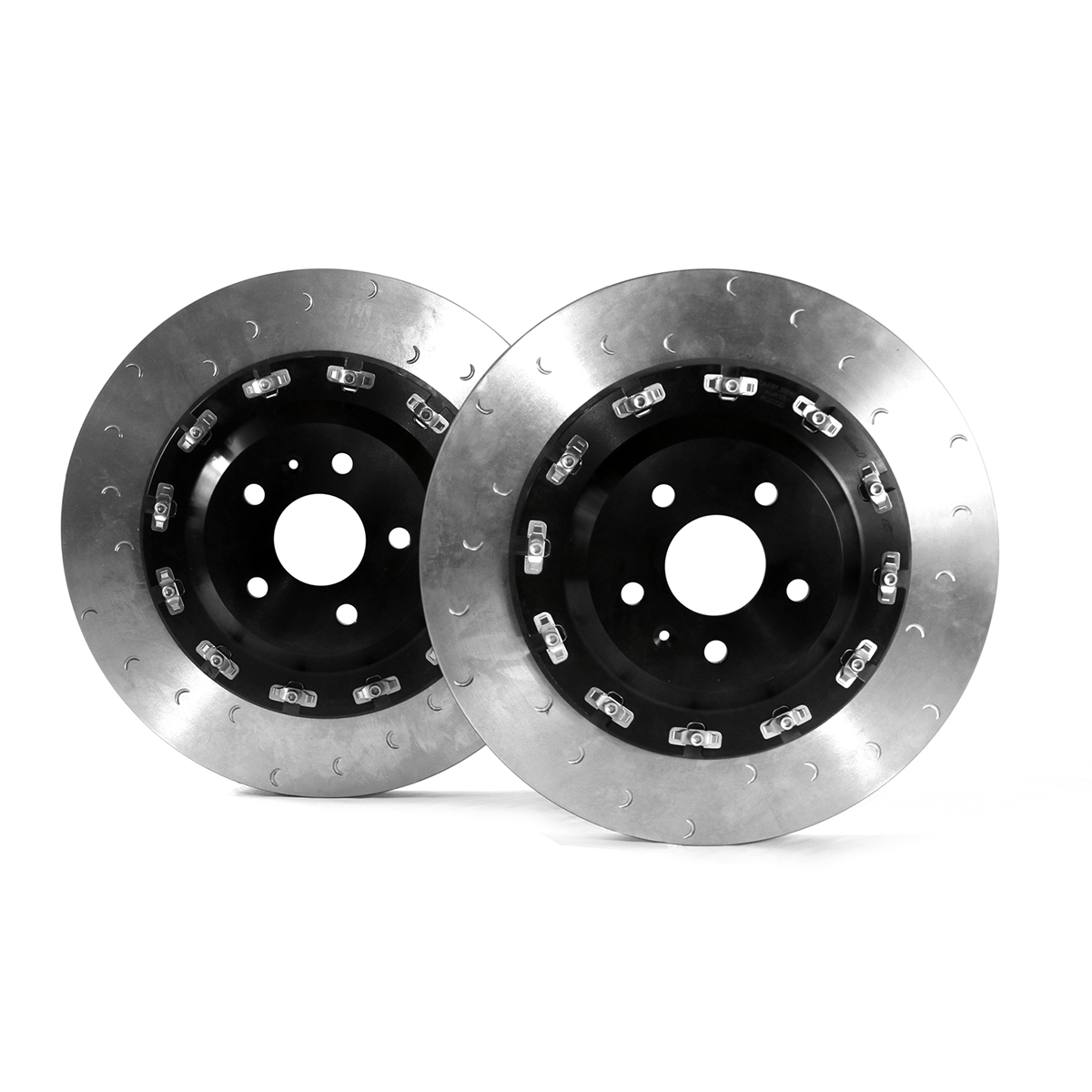

The Revo disc upgrade is designed to directly replace the stock discs and comes complete and ready to fit with left and right-handed, directional 380mm two-piece floating discs. Saving 1.2 Kg each side the disc not only weighs less than the OEM part but also features much larger, more efficient cooling veins individually designed for each side of the vehicle to ensure even braking performance, pad wear and cooling capability. This is a premium upgrade that should have come from the factory. As the Revo discs dissipate heat much more efficiently the factory pad compound works much better in real-world conditions, only when you’re using the vehicle on the track would we recommend considering a different pad altogether.

Key Features

• Left & right handed discs
• + 5% braking surface
• Two-piece floating design
• + 10mm larger disc
• Larger more efficient cooling vanes

Heat Management – Heat is an unavoidable by-product of friction. Managing this heat efficiently is extremely important to avoid it transferring to the pads, calliper and fluid. The OEM RS3 discs are manufactured as a single part, pumping air in different directions on each side of the vehicle. This causes varying levels of cooling efficiency and temperatures leading to judder and brake fade.

Revo Discs – Revo discs are manufactured by Alcon and utilise over thirty years of motorsport expertise in their design and manufacture. Internal vanes are used to draw air through the centre of the disc outward, allowing the heat to transfer as it passes. The rotation of the discs and vanes play an important role in brake cooling as it acts as a pump to move air and unlike the OEM brake discs, the Revo upgrade consists of a right and left-hand disc to optimise cooling and ensure consistent stopping power for your vehicle.

Two-Piece Floating Design – Utilising a two-piece floating design allows the disc and hat to expand radially and axially as they absorb heat generated from use, avoiding the most common cause of warping and cracking seen in single-piece rotors. Due to the efficiency of this design, Revo discs last considerably longer than factory discs. The friction surface features crescent groves that increase bite and remove debris from the pad surface giving the perfect balance between brake feel and longevity while minimizing the pedal pulsations normally associated with straight-slotted rotors or cracking issues common with cross-drilled rotors.

Additional Information

See more information and download the fitting template over at onlyrevo.com
